P/N: ETI0014-1110 Rugged Rackmounut Disk Expansion Unit with Drip Proof Front

Part Number: ETI0014-1110
Model: ETI0014-D8 Series
Mission Critical™ Rugged Rackmount
Drive Expansion Unit


US Navy Trident99 Program Standard Product
8 Half Height Front Access Bays, Redundant Power Supplies
Drip Proof Sealed Front Panel, Shallow Depth

ETI0014-D8 Front with Panel Closed
ETI0014-1110 Front with Drip Proof Panel Closed

ETI0014-1110 Front Panel Layout (Shown in US Navy Trident 99 configuration)

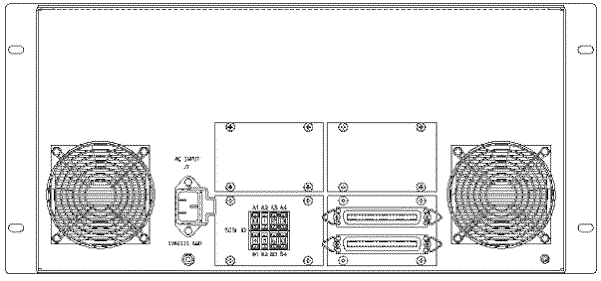

ETI0014-D8 Rear Panel Layout (Shown in US Navy NSSN configuration)
ETI0014-1110 Rear Panel Layout (Shown in US Navy Trident 99 configuration)


The Mission Critical™ ETI0014-D8 (D8 for short) is ideally suited for criticalapplications requiring rugged rack or table mount and/or portable construction, highreliability, compact size and light weight design. The heavy duty chassis occupies only5Uof rack space while accommodating up to eight half height, shock mounted, mass storagebays powered by four redundant 65 watt power supplies. Each bay can have mounted eitherone full height or two half height or three slim height devices. The front panels provideaccess to either two full height or four half height devices with removable media (i.e.floppy disks, tape cartridges, CD-ROMs, or optional drive shuttles). The rounded metalcorners and rugged handles, aid in safe handling. The chassis has threaded inserts forfour of the more commonly used rack slides. The optional mounting kit includes flanges andlegs for horizontal or vertical mounting other than rack. Internally, all major componentsare well secured and electrically insulated to prevent damage due to shock and vibration.Additionally each drive bay is shock mounted within the chassis. The universal inputselects from either domestic or international voltages automatically. The LED arrays keepthe operator informed as to the power and activity status of each device. Controls andprotective devices are brought to the front control panel which is recessed to preventdamage or accidental operation. The input switch, fuses and wiring provide double poleisolation for shipboard systems. A bi-directional single-ended to differential SCSIconverter option allows the mixing of both single-ended and differential SCSI devices onone SCSI bus. This option is available for either Fast SCSI-2 or Fast-Wide SCSI-2 andSCSI-3.

The rear panel provides four interface panel positions. Interface panel options areavailable for all standard SCSI connectors. These can be mixed and matched to suit aparticular configuration. An optional SCSI ID selector switch panel allows externalsetting of device IDs. Dual washable intake air filters and high capacity ball bearingfans provide added protection in both controlled and hostile environments. The cooling airis diverted out the front vents after passing by both top and bottom of each device.

Overall, the Mission Critical™ line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.

Technical Specifications:
P/N: ETI0014-1110
DRIVE BAYS
Drive bays type: (8) half height height or slim height devices
Drive bay mounting: Each full bay holds half height or shuttle
Removable media: Front bays can have fixed or removable media
DRIVE BAY POWER
Drive bay power: Both +5 and +12 VDC to each half height bay
Drive power connector: Both standard and mini power connectors
Drive power control: Keyed ON/OFF switch per drive shuttle bay
Drive status indicators: (1) Power, (1) Activity LED per shuttle bay
DRIVE I/O INTERFACE
I/O Ports: Four chassis input/output (I/O) panels standard
I/O Connectors: Selection of 50 and 68 terminal connectors for
SCSI-2 and SCSI-3, Fast, Fast/Wide and LVD
Other I/O interfaces available upon request
SCSI address selection: Fixed at device by jumper setting standard,
SCSI ID selector switches
Single-ended/Differential: Can be mixed w/ optional bi-directional converter
AC INPUT
Input voltage selection: 100-240 VAC, 46-70 Hz autoranging, DC optional
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Guarded, double pole, front mounted switch
Front mounted fuses, 1 per line
Internal AC input fuse on each supply x 4
Input status indicator: AC Power On indicator, green neon
Input power connection: IEC320-15P with cable restraint, others optional
INTERNAL DC SUPPLIES
Output rating: each Redundant 65 watts supplies x 4
Output voltage:+5 VDC +5 VDC, ± 5% tolerance, 50 mV ripple
Output current:+5 VDC 3.5 A max., 0.5 A min., 8 A peak, each supply
Output voltage regulation:+5 VDC ± 1.0% static, ± 5.0% dynamic of nominal
Output voltage:+12 VDC +12 VDC, ± 10%, 100 mV ripple
Output current:+12 VDC 4.0 A max., 0.5 A min., 8 A peak, each supply
Output voltage regulation:+12 VDC ± 2.0% static, ± 10% dynamic of nominal
Output status indicator: DC Power On, green LED, 1 per supply
MECHANICAL
Overall Dimensions ( H x D x W ): 8.75 (5U) x 18.3 x 19.0 in (222x465x483mm)
Rack Slide Mount Patterns: General Devices pattern, others optional
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Shipping weight: 25 lb. (11 kg) with lift handles front and rear
Audible noise: Less than 45 dB @ 5.0 ft., ANSI "A" scale
Cooling type: Dual, high capacity, positive pressure, forced air
Cooling air direction: Rear intake, exhaust to sides standard
Air intake filter: Washable filter media, various porosities
ENVIRONMENTAL
Storage temperature: -13° to 140° F ambient (-25° to 60° C)
Operating temperature: -4° to 122° F ambient (-20° to 50° C )
Operating humidity: 0 to 95% relative humidity (non-condensing)
Operating elevation: Up to 15,000 ft (4,572 m), higher optionally
STANDARDS
United States: Meets to UL standard 1950
MIL STDs 167, 901, 810, 454 & 1399
Canada: CSA requirements 1402C safety requirements
EMI Protection: EMI/RFI FCC, Class A, optional MIL STD 461
OPTIONAL ACCESSORIES
  Alternate mounting kit, Custom configurations

For information on ETI's rugged removable disk drive carriers, check out ETI0014-DE200that are hot swappable, RAID compatible and withstand shock and vibration.
