Part Number:
ETI0001-2227AD
Rugged Mil Spec® 1000 VA
Rackmount Global UPS

US Navy Configuration
Military Power® Rugged Mil Spec Rack Mount 1.0 kVA UPS
Autoranging Global IsolatedInput Accepts 85-270 VAC, 46-70 Hz
Input PFC, Manual Bypass, Elapsed Time
Plus Front Access Hot Swappable Battery Module

P/N:

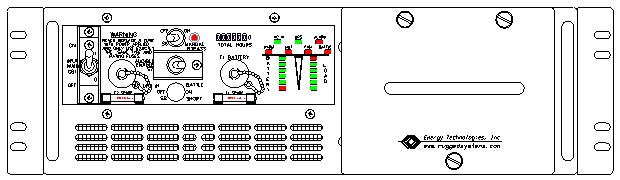

ETI0001-2227AD Rugged Mil Spec UPS Standard Front Panel Layout

P/N:
ETI0001-2227AD Rugged Mil Spec UPS Standard Rear PanelLayout

The field proven Military Power® UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments. The
ETI0001-2227AD is specifically designed for lightweightglobal powerbythe US Navy as thepower source for critical systems because of the stringent performanceand reliability requirements.

The heavy-duty chassis, occupying only 5.25”(3U) of rack space while delivering up to 1000 VA of clean, uninterruptible power. Therounded metal corners and rugged handles frontand rear, aid in safe handling. Internally, all major components are wellsecured and electrically insulated to prevent damage due to shock andvibration.  These units can be mountedhorizontally or vertically. Optional heavy-duty rack slides provideeasy installation and removal of the unit with full extension.

The internal shielded input transformerprovides galvanic isolation with provisions for both domestic(115 VAC, CONUS) and international (230 VAC, OCONUS) input voltages. Theautoranging input voltage selection allows inputting either 115 VAC or 230 VACwithout having to open the UPS enclosure.Special EMI/RFI filters and inputpower factor correction minimize both input current and harmonics. Theunit also operates as a frequency converter, taking 46-70 hertz input andconverting it to clean, uninterruptible 60 hertz power. Optionally, 46-440hertz input as well either 50or 400 hertz outputs are available.

The LED arrays keep the operatorinformed as to the unit's status including load and battery levels. The ElapsedTime Indicator records the number of operational hours for records andscheduling preventative maintenance of attached equipment. The front panel alsoprovides easy access to both the AC Input and Battery Input fuses. Coupled withthe adjacent spare fuses, MTTR is reduced to less than 15 minutes. Thehigh intensity audible alarm can be heard in high noise environments andincludes an audible enable/disable switch.

Allcontrols and protective devices are brought to the front and rear panels with criticalswitches or circuit breakers having finger guards. Further, all front panel devices are recessed toprevent damage or accidental operation. Clips on the front panel hold sparefuses for ready access. Theinput circuit breaker and the galvanic isolation transformerall provide a double pole isolated source for all installations including shipboard systems oroverseas locations where phase references and grounding are not consistent. Themanual bypass feature included is operated from the front panel. Even in thebypass mode, the
ETI0001-2227AD stillprovides galvanic isolation, transient surge protection and EMI/RFI filtering.

The
ETI0001-2227AD has the added benefit ofhaving a field replaceable battery via front drawoutbattery module. The battery is a true hot-swappable module and does notrequire going to bypass like competing units. Even with this batterymodule removed, this UPS can continue to operate as an electronic powerconditioner and frequency converter, providing clean, well regulated, sinusoidalpower to the load.The batteries are maintenance free with immobilized electrolyte and areconstructed of flame retardant materials for added safety. For more information, see the BatteryTechnology section.

The rear panel provides locking connectors for the inputand output power with various optional configurations available. Thetwo Status connectors provide an interface with optional computer softwareproviding loss of AC and low battery status as well as remote shut downcapability.

Thisunit draws air through the front air filter and exhausts out the rear vent into the rack.This allows the unit to be used in negative or neutral pressure racks. Forpositive pressure racks, rear to front or rear to side versions are available. The removable and washable metal screen air filters and high capacitystainless steel ball bearing fans provideadded protection in both controlled and hostile environments.

See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series section forversions of UPS with an integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.
