Part Number:
ETI0001-2214
Military Power® Rugged Mil Spec® Rated
3000 VARackmount UPS

US Navy AN/BLQ 10 (V) Submarine Electronic Warfare Systems
Isolated Mil Spec UPS, 3000 VA Rugged Rack Mount UPSw/ PFC

NSN: 6130-01-494-1998

P/N:

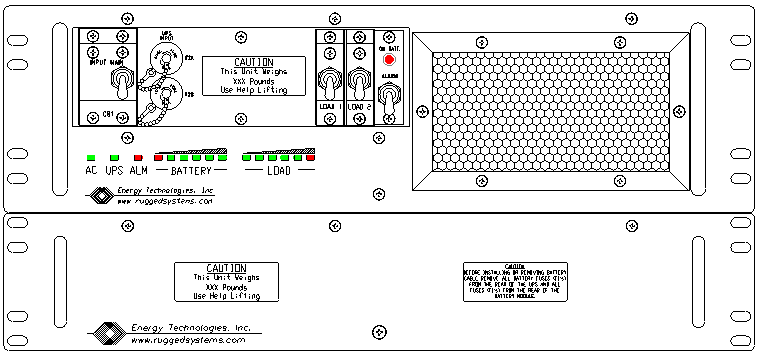

ETI0001-2214 Rugged Mil Spec UPSStandard Front
Panel Layout w/ 2U Battery Module, NSN: 6130-01-494-1998

P/N:

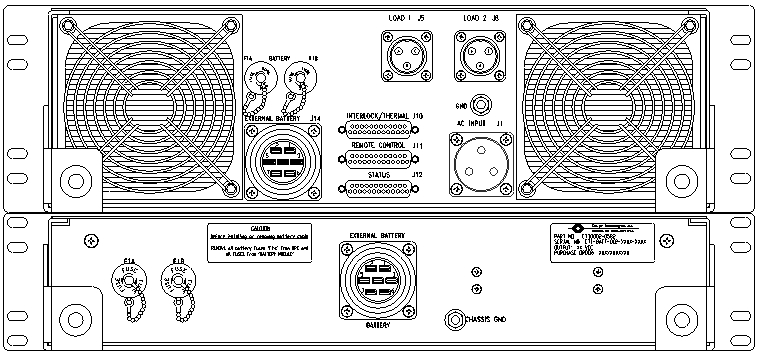

ETI0001-2214 Rugged Mil Spec UPS Standard Rear
Panel Layout w/ 2U Battery Module

The field proven Military Power® UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.These units are equally suited for use in shipboard, airborne, vehicular, fielddeployed or fixed locations with controlled or uncontrolled environments. The
ETI0001-2214 was specifically designed for US Navy AN/BLQ10 (V) Submarine Electronic Warfare Systems requiring higher power requirements.

The 3Uelectronics module can be mounted in the upper section of the rack near eyelevel or lower in the rack near the battery module. The heavier 2U batterymodule is usually mounted in the bottom of the rack for lowering the center ofgravity of the rack. A  heavy duty shielded cable is provided to connectthe two modules. Both chassis have roundedmetal corners and rugged handles, both front and rear, aiding in safe handling. Internally, all major components are well secured and electrically insulated to preventdamage due to shock and vibration in any axis. These units can be mountedhorizontally or vertically.

The internal shieldedinput transformer provides galvanic isolation with provisions for domestic (115 VAC, CONUS) and optionally for international (230 VAC, OCONUS) inputvoltages. Theunit also operates as a frequency converter, taking 46-70 hertz input andconverting it to 60 hertz power. Special EMI/RFI filters and inputpower factor correction minimize both input current and harmonics. The inputcircuit breaker and the galvanic isolation transformerall provide a double pole isolated source for all installations including shipboard systems oroverseas locations where phase references and grounding are not consistent.

The LED arrays keep the operator informed as tothe unit's status including load and battery levels. The high intensity audible alarm canbe heard in high noise environments.All controls and protective devices are brought to front and rear panels with criticalswitches having finger guards. Further, all front panel devices are recessed to preventdamage or accidental operation. The display andcontrol panel can be mounted remotely in the rack at eye level, or on the keyboard console,or on the unit front panel with only a logic level cable connection.

The rear panel provides lockingconnectors for the input and output power with various optional configurationsavailable. The output connectors are MS threaded metal shell connectors. Thisunit draws air through the front and exhausts out the rear vents into the rack.This allows the unit to be used in either negative or neutral pressure racks.  A removable and washable intake air filter and high capacity stainless steel ball bearing fans provide added protection in both controlled and hostile environments. The external battery connector allows the safe and easy addition ofthe standard or extra battery modules without having to shut the unit down.The batteries are maintenance free with immobilized electrolyte and areconstructed of flame retardant materials. For more information, see the BatteryTechnology section. An optionalfrequency selection is available for those sites requiring 50 hertz output insteadof the standard 60 hertz. The Status connector provides aninterface with optional computer software providing loss of AC and low battery status as well asremote shut down capability. The PDU Remote Control connector provides aninterface to optional remote display/control panels.

See the Power Distribution Units section for a listing ofstand alone PDUs. See the N5 Series UPS section for UPS withthe integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for critical shipboard, vehicle,airborne or land based systems combining advanced modular design features with highlyreliable construction
